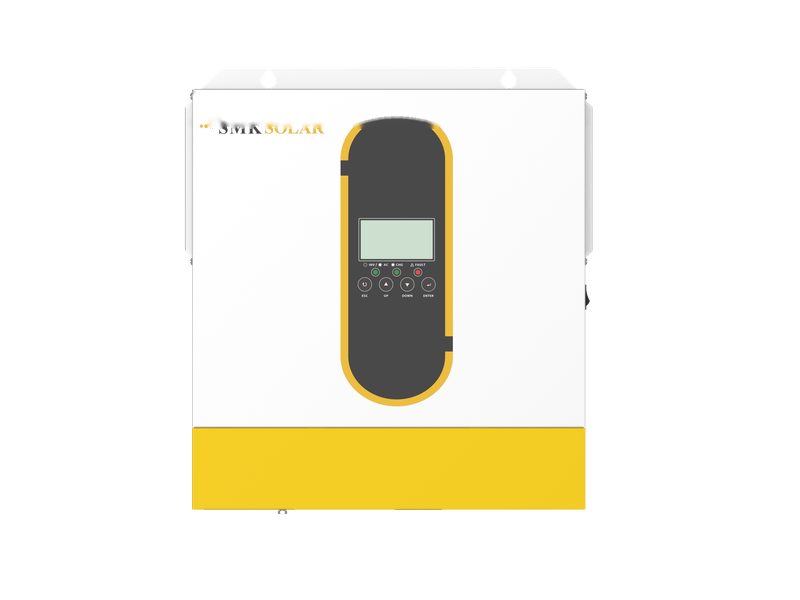

EMT Series Intelligent Dual AC Output Hybrid Inverter (4.2kW / 6.2kW)

Smart Dual AC Output: Protects critical loads while shedding heavy appliances
Massive PV Overclocking: Up to 6.2kW PV on 4.2kW; up to 9.0kW PV on 6.2kW
120A High-Speed MPPT + 120A AC Utility Charging
12.4kVA Peak Surge Power for Inductive Motors & Air Conditioners
Dual Communication Ports: RS485 (Lithium BMS) + RS232 (Monitoring/WiFi)

Parameter	EM4200T-24L	EM6200T-48L
Rated Power	4200W	6200W
Dual AC Output	YES (Main + Second Output)
Battery Voltage	24 VDC	48 VDC
Max. PV Input Array	6200 W (Overclock)	9000 W (Overclock)
MPPT Voltage Range	60 VDC ~ 500 VDC (Max. Voc 500V)
Surge Power (5s)	8400 VA	12400 VA
Max. Charge Current	120 A Solar + 120 A AC Utility
Dimensions (D×W×H)	371.8×342×116.5 mm (7.9 kg)	540×403×122 mm (14.8 kg)

Inquiry

Feature
Parameter
Download

EMT Series Core Advantages

1. Dual AC Output (Load Shedding Protection): Features two physical AC circuits on the inverter bottom. Critical loads (refrigerator, security lights, router) connect to Main Load; non-critical heavy equipment (air conditioner, heater, washing machine) connect to Second Load. When battery reserves fall below safe threshold, the inverter cuts off the second output, keeping food preserved and communications active up to 3x longer.

2. 1.45x PV Input Overclocking: Up to 6.2kW PV array on the 4.2kW model, and 9.0kW PV array on the 6.2kW model. Maximizes solar generation during winter or overcast mornings.

3. 120A Rapid MPPT Recharging: Allows 120A continuous solar charging and 120A utility AC charging, fully topping up a 48V 100Ah battery bank in under 2 hours.

Technical Specifications	EM4200T-24L	EM6200T-48L
Rated Output Capacity	4200VA / 4200W	6200VA / 6200W
Dual AC Load Output	YES (Main + Second Independent Circuits)
Nominal Battery Voltage	24 VDC	48 VDC
Surge Power (5s)	8400 VA	12400 VA
Max. PV Array Input Power	6200 W (Overclocking)	9000 W (Overclocking)
MPPT Range & Max Voc	60VDC ~ 500VDC / 500VDC Max Open Circuit
Max. Solar Charge Current	120 A
Max. AC Utility Charge Current	120 A
Dimensions (D×W×H)	371.8 × 342 × 116.5 mm (7.9 kg)	540 × 403 × 122 mm (14.8 kg)
Packaging Size & Weight	478 × 408 × 195 mm (8.9 kg)	637 × 495 × 214 mm (15.6 kg)
