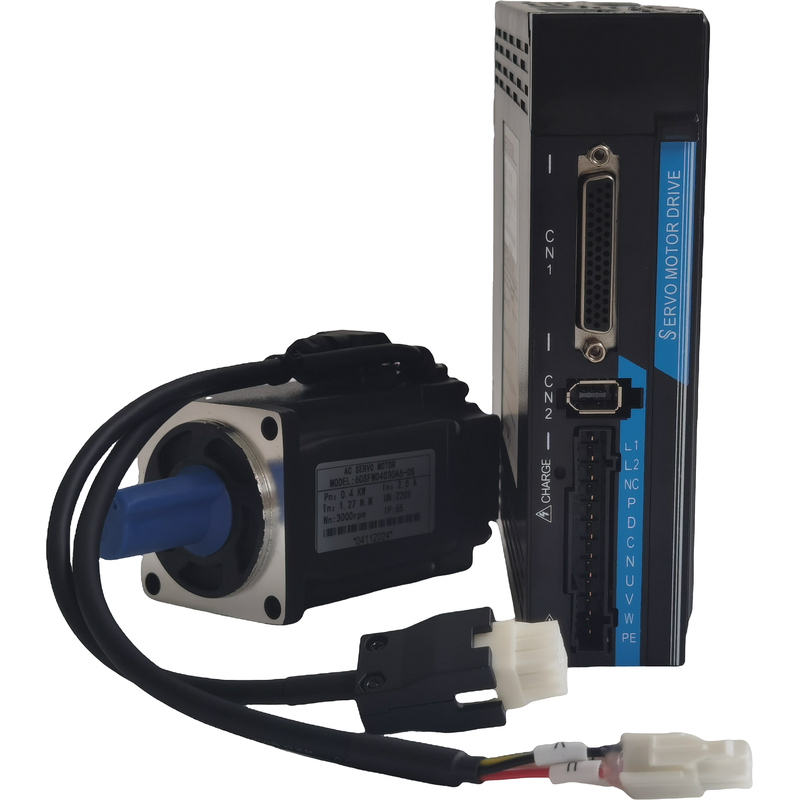

H200S Series High-Response AC Servo Drive & Motor System (0.4kW ~ 3.0kW)

Complete Matched Drive & Motor Kit: Includes AC servo drive, 4-pole-pair permanent magnet motor, and encoder/power cables.
Ultra-High Precision Feedback: 17-bit / 23-bit Optical Absolute Encoder (up to 8,388,608 pulses/rev) or 2500-line incremental.
300% Peak Torque Overload: Robust dynamic acceleration; handles load inertias up to 3x motor rated inertia effortlessly.
6 Flexible Operating Modes: Position, Speed, Torque, and hybrid Position/Speed, Position/Torque, Speed/Torque modes.
Built-in Multi-Segment Position Table: Execute 16-point internal positioning routines via DI trigger without an external motion controller.

Key Specification	Rating & Value
Rated Power Range	0.4kW, 0.75kW, 1.0kW, 1.5kW, 2.0kW, 2.3kW, 2.6kW, 3.0kW
Main Circuit Power Supply	Single/Three-Phase AC 220V (-15% ~ +10%), 50/60Hz
Motor Flange Sizes	60mm, 80mm, 90mm, 110mm, 130mm (DN Series 4-Pole-Pair)
Position Pulse Input Modes	Pulse + Direction, CCW/CW Pulse, A/B Orthogonal, Internal Position
Electronic Gear Ratio	Numerator: 1 ~ 32767 / Denominator: 1 ~ 32767
Communication & Braking	RS485 Modbus; Built-in Dynamic Braking Unit & Regenerative Resistor

Inquiry

Feature
Parameter
Download

H200S AC Servo System Performance Highlights

1. High Bandwidth Velocity & Current Loop Control

Built upon high-speed digital signal processing hardware and optimized current decoupling algorithms, the H200S delivers a speed response frequency bandwidth exceeding 1.2kHz. Torque response time is under 1ms, suppressing settling vibrations at high speeds and ensuring exceptional positioning repeatability in cyclic stop-and-go machinery.

2. 17-Bit / 23-Bit Optical Absolute Encoder Options

Eliminating the need for external limit switches or homing dog routines upon machine startup, the multi-turn absolute encoder retains absolute position data through battery-backed memory even during power outages. Resolution reaches 8,388,608 pulses per revolution, enabling mirror-smooth low-speed rotation without cogging ripple.

3. Complete DN Series Servo Motor Matching

Paired with high-flux neodymium rare-earth permanent magnet motors, the DN series features low rotor inertia, high thermal dissipation margins, Class F insulation, and standard IP65 motor protection. Available with or without electromagnetic failsafe holding brakes for vertical Z-axis applications.

4. 16-Segment Internal Position & Built-in Homing

For standalone applications without an expensive external PLC, the H200S can execute 16 internal position coordinates triggered by digital inputs. Each step allows individual definition of target position, velocity, acceleration, deceleration, and pause dwell time.

H200S Drive & DN Servo Motor Matching Matrix

Motor Model	Flange (mm)	Power (kW)	Rated Speed (rpm)	Rated Torque (N·m)	Peak Torque (N·m)	Matched Drive
DN60-01330A6-MH(B)	60	0.4	3000	1.27	3.8	H100S / H200S
DN80-02430A6-MH(B)	80	0.75	3000	2.39	7.1	H100S / H200S
DN80-04025A6-MH(B)	80	1.0	2500	4.00	12.0	H200S
DN90-04025A6-MH(B)	90	1.0	2500	4.00	12.0	H200S
DN110-05030A6-MH(B)	110	1.5	3000	5.00	15.0	H200S
DN110-06030A6-MH(B)	110	1.8	3000	6.00	18.0	H200S
DN130-07725A6-MH(B)	130	2.0	2500	7.70	22.0	H200S
DN130-10025A6-MH(B)	130	2.6	2500	10.00	25.0	H200S
DN130-15015A6-MH(B)	130	2.3	1500	15.00	30.0	H200S
DN130-15020A6-MH(B)	130	3.0	2000	15.00	30.0	H200S

* Suffix (B) designates optional 24VDC electromagnetic brake. Standard cables: 3m, 5m, 10m.

📥 Download H200S Series AC Servo Drive & Motor User Manual (PDF, 104 Pages)

Contains complete wiring diagrams for CN1 control signals, CN2 encoder pinouts, RS485 communication protocols, internal position parameters, and fault diagnosis codes.

Motion Control Engineering Support: Contact HBDTECH automation team at [email protected] for multi-axis servo kits, precision planetary gearboxes, and customized cable lengths.
