Home Solar Energy Storage

TH Serise Solar System Energy Storage

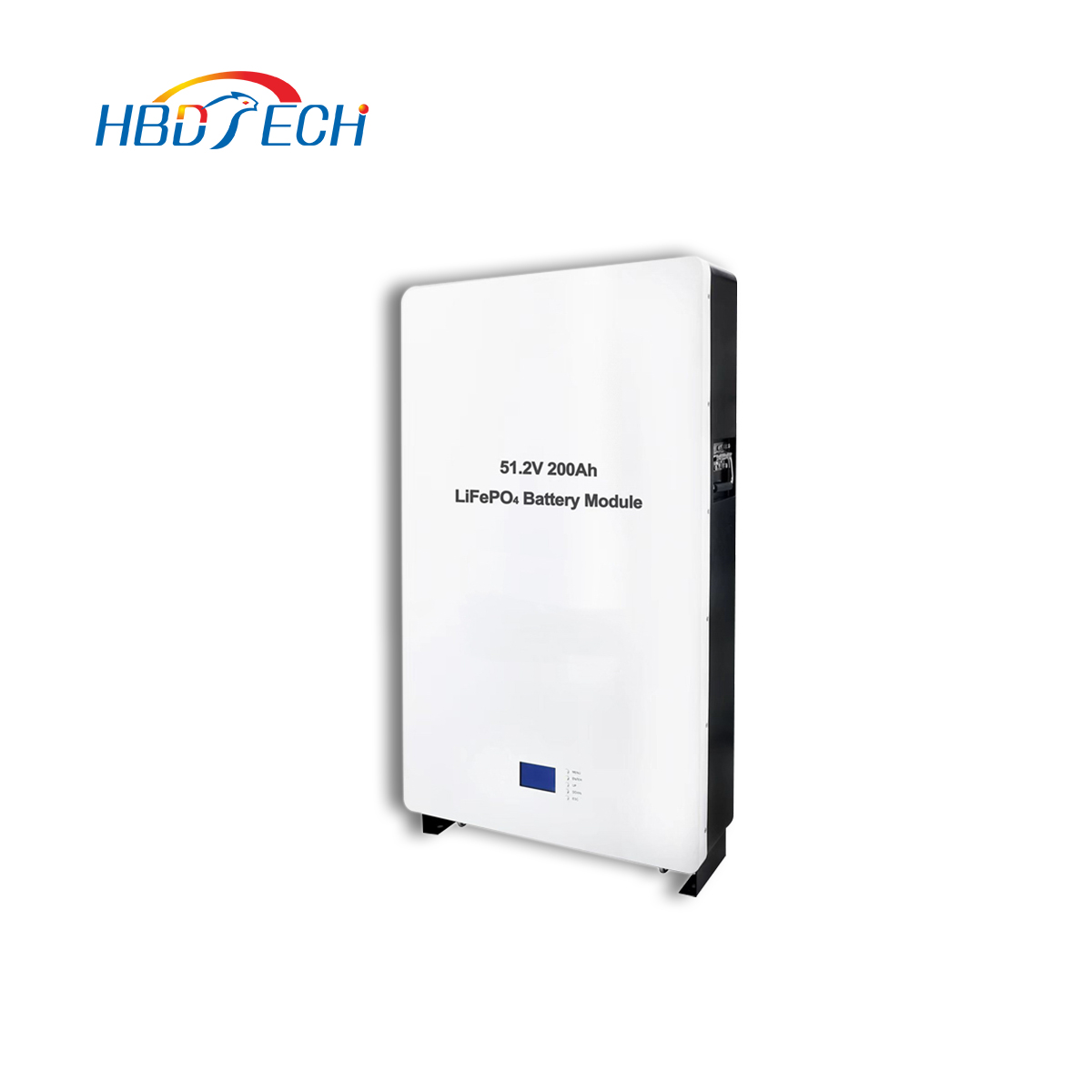

  • Power Wall All in One

  • Lithium Ion LiFePO4 Batteries 24V

  • Home Solar System Energy Storage


Inquiry
  • Feature
  • Parameter
  • Download

Model TH3000 TH3500 TH5500
Rated Power 3KW 3.5KW 5.5KW
Battery capacity 25.6V60Ah/1536Wh 25.6V120Ah/3072Wh 51.2V100Ah/5120Wh
Controller Solar   MPPT controller Solar MPPT controller Solar MPPT controller
Battery Type LiFePO4 LiFePO4 LiFePO4
Solar PV input 30VDC-80VDC
Max Power 1200W 		120VDC-450VDC
Max Power 3000W 		120VDC-450VDC
Max Power 5500W
Size 695*455*173mm 695*455*173mm 850*530*175mm
Net weight 36Kg 36.5KG 53KG



Model TH3000 TH3500 TH5500
Rated Power 3KW 3.5KW 5.5KW
Battery capacity 25.6V60Ah/1536Wh 25.6V120Ah/3072Wh 51.2V100Ah/5120Wh
Controller Solar   MPPT controller Solar MPPT controller Solar MPPT controller
Battery Type LiFePO4 LiFePO4 LiFePO4
Solar PV input 30VDC-80VDC
Max Power 1200W 		120VDC-450VDC
Max Power 3000W 		120VDC-450VDC
Max Power 5500W
Size 695*455*173mm 695*455*173mm 850*530*175mm
Net weight 36Kg 36.5KG 53KG


Home Solar Energy Storage说明书
